Free CNC router projects, ready to cut on your machine. Open one in GCarve, choose your machine, your bits and your board, and get G-code for 66+ controllers, including WinCNC, GRBL, Mach3, ShopBot and Masso. Most come with free DXF and SVG files too.

beginner 4 v-carve 4 gift 2 kitchen 2 outdoor 2 pocket 2 sign 2 ball-nose 1 cabinet 1 coaster 1 cutting-board 1 drill 1 furniture 1 house-number 1 mdf 1 sampler 1 test 1

Newest Top rated Most popular

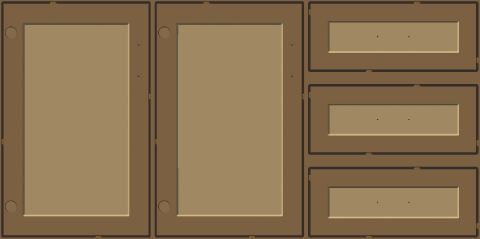

Cabinet doors with hinge cups (MDF)60″ × 32″ × 0.75″ · 1/4 Down End Mill (0.25 inch), 1/8 End Mill (0.125 inch), V-Bit (90 deg 0.5")by GCarve

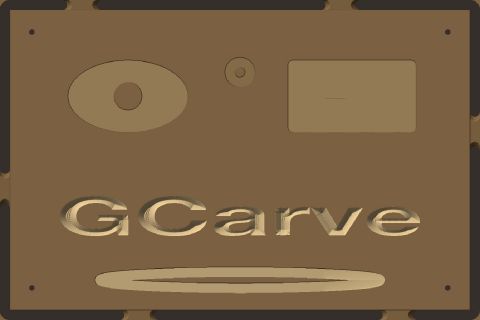

Sampler board: every toolpath type12″ × 8″ × 0.75″ · 1/4 Down End Mill (0.25 inch), 1/8 End Mill (0.125 inch), V-Bit (90 deg 0.5")by GCarve

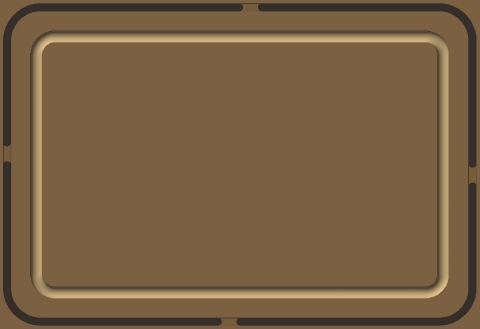

Cutting board with juice groove16″ × 11″ × 0.75″ · 1/4 End Mill (0.25 inch), 3/8 Ball Nose (0.375 inch)by GCarve

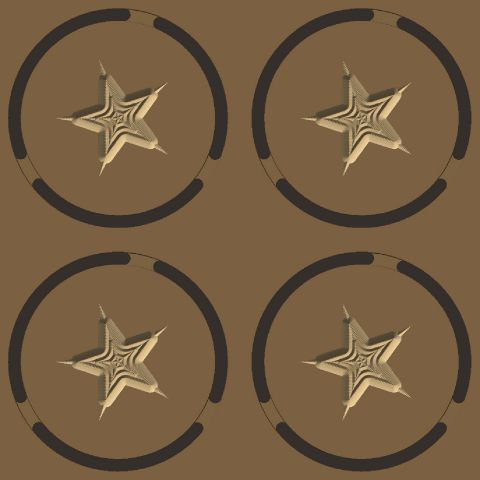

Star coasters (set of 4)10″ × 10″ × 0.5″ · 1/4 End Mill (0.25 inch), 90° V-Bit (0.5 inch)by GCarve

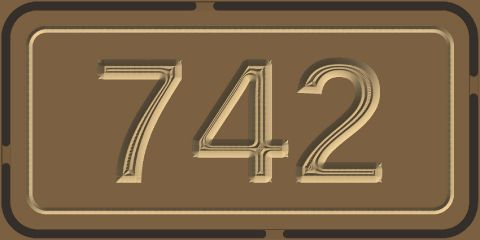

House number sign14″ × 7″ × 0.75″ · 1/4 End Mill (0.25 inch), 90° V-Bit (0.5 inch)by GCarve↓ 1

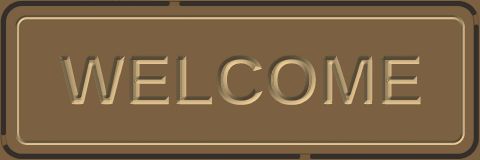

Welcome sign (24 × 8 in)24″ × 8″ × 0.75″ · 1/4 End Mill (0.25 inch), 90° V-Bit (0.5 inch)by GCarve↓ 1

Questions

Are these CNC projects free?

Yes. Every project here is free to open, change and cut, under the license shown on its page (Creative Commons). GCarve itself is free in the browser and as a desktop app.

Which CNC machines do they work on?

Any CNC router GCarve can post for: 66+ controllers including WinCNC (CAMaster), GRBL (Shapeoko, X-Carve, Onefinity, LongMill), Mach3, Mach4, LinuxCNC, ShopBot, Masso, UCCNC and Centroid. When you open a project, GCarve asks for your machine, your bits and your board thickness, then makes G-code for it.

Can I download the DXF or SVG files?

Most projects include SVG and DXF vector files you can download from the project page, for use in any CAD or CAM program. The GCarve project file (.tlp) keeps the toolpaths too.

How do I share my own CNC project?

In GCarve choose File › Share to Community…, add a title, a few photos and a license, and send it. It appears here once it has been checked, usually within a day.
